SM Series: Compact, Portable, Gas Powered, Diesel Heated

National Specials Request Catalog
SM Series: Compact, Portable, Gas Powered, Diesel Heated
  • 001-v181119
  • 002-v181119
  • 03-v181119

Description

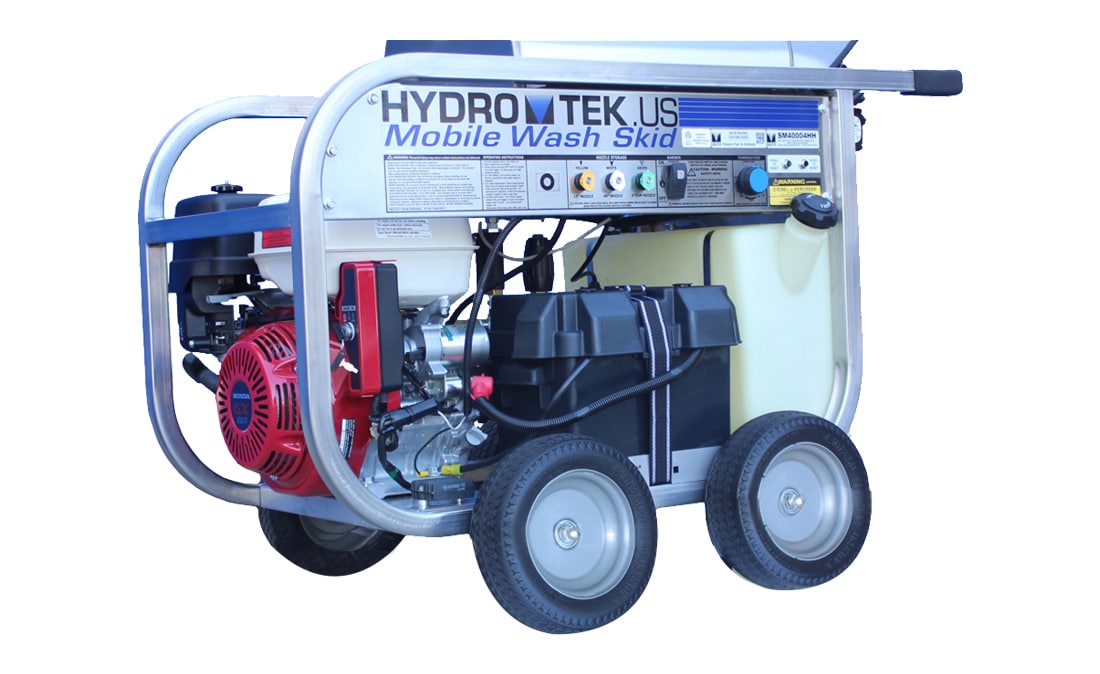

The SM Series is a compact and portable hot water pressure washer. It is powered by a gas engine and ready for use wherever a water source is available. No electricity is required.  With a SpiraLast coil and 12v burner you will quickly and efficiently heat water to effectively blast away grease and grime.  The SM Series includes airless tires to eliminate flats on a jobsite and is easy to maneuver with the integrated handles.  Stainless panel, coil enclosure, and rain guard are rust resistant and keep your machine looking great for years.  The SM Series is a value conscious choice in hot water pressure washers without sacrificing performance, features, and operator safety.

Features:

Rugged Steel Frame:

Hydro Tek’s 1¼”, heavy gauge steel frame is durable for rough terrain and has integrated handles for maneuverability. Ask your local distributor about a FREE stainless steel frame upgrade.

Stainless Steel Panel, Coil Housing, and Burner Cover:

These rugged and durable panels offer lifetime rust and corrosion resistance and keeps your machine looking like new for years to come.

Simple to Use Controls:

Lighted rocker switch, adjustable  thermostat, and other controls are located on an easy to reach panel. Includes panel mounted, resettable circuit breakers to protect the electrical system of your pressure washer.

Commercial Engines:

These single cylinder, air cooled, commercial Honda engines are fuel efficient and easy to start. Electric start engine on SM40004HH, Pull start engine on SM30003HH.

Open Frame Design:

The open design allows for quick access to all components for fast refueling and periodic maintenance.

Fuel Tanks:

The Honda engine powered wash skid has an integrated unleaded gasoline tank. The burner diesel tank is a heavy duty “roto-molded” rust free tank with fuel filter to protect against contaminated diesel fuel.

Nonintegrated, Remote Mounted Unloader:

The unloader is separate from the pump, nonintegrated, eliminating heat failure and vibration.

SpiraLast™ Coil:

The coil is a Hydro Tek manufactured SpiraLast™ heating coil. Robotically fused ½” schedule 80 steel pipe is cold rolled to protect the steel pipe from fatigue and the spiral coil is then surrounded by ceramic insulation and a stainless enclosure with double-wall end caps. Ask your dealer about the Lifetime Coil Warranty.

Portability:

The SM Series comes standard with four airless tires for moving the machine right to your wash site. Maneuver through glass, nails and other sharp job site objects worry & flat free.

Flexible, high intensity 12V Diesel Burner System:

Sophisticated 12V burner system transforms available power from system to fire the diesel burner. This efficient burner system, with

PowerLight ignitor, provides maximum burner performance. No outside power source is required.

Direct Drive Pump:

These industrial triplex, ceramic plunger pumps for a long life of industrial duty use.

More Standard Features:

Burst disc technology for operator safety, adjustable temperature up to 250ºF, heavy duty wand/gun, snap lid battery box, 50’ high pressure hose, and quick release nozzles.

Specifications

Model PSI GPM CC Engine
SM40004HG 4000 3.5 389 GX390 Honda Gasoline Electric Start

Dimensions: 36″l x 28″w x 37″h

Request Information

Video

There is currently no video for this product, check out our YouTube Channel for other videos:

Hydro Tek YouTube Channel

  • Hot Water Pressure Washers

    Hydro Tek hot water pressure washers are designed to tackle the toughest messes wherever they may occur. Our products feature high-quality stainless steel construction, simple controls, and an innovative Spiralast™ heating coil that improves efficiency and reduces your fuel costs. We manufacture the Spiralast™ coils right here in our facility using a proprietary cold rolled process and robotic welds for exceptional strength and unimpeded flow. Our Spiralast™ lifetime warranty is the ONLY lifetime heating coil warranty in the industry.

  • Advantages of a Hot Water Pressure Washer

    Simply by heating up the water, a hot water pressure washer delivers dramatically improved cleaning power compared to a cold water machine. Hot water pressure washers are especially useful for cleaning sticky, greasy, or oily surfaces, because they will loosen the dirt much faster without the large amounts of soap, detergent, or other cleaning chemicals that must be used with a cold water system.

  • Hot Water Pressure Washer Applications

    A hot water pressure washer is essential for any cleanup job involving a sticky, greasy, or oily mess, as well as for applications where a surface must be sanitized. With a variety of models available, including self-contained mobile units with gas, diesel, or electric power, Hydro Tek hot water pressure washers can go anywhere and clean anything. Some common applications include heavy equipment cleaning, vehicle cleaning, graffiti removal, restaurant hood vent cleaning, and livestock facility cleaning.
