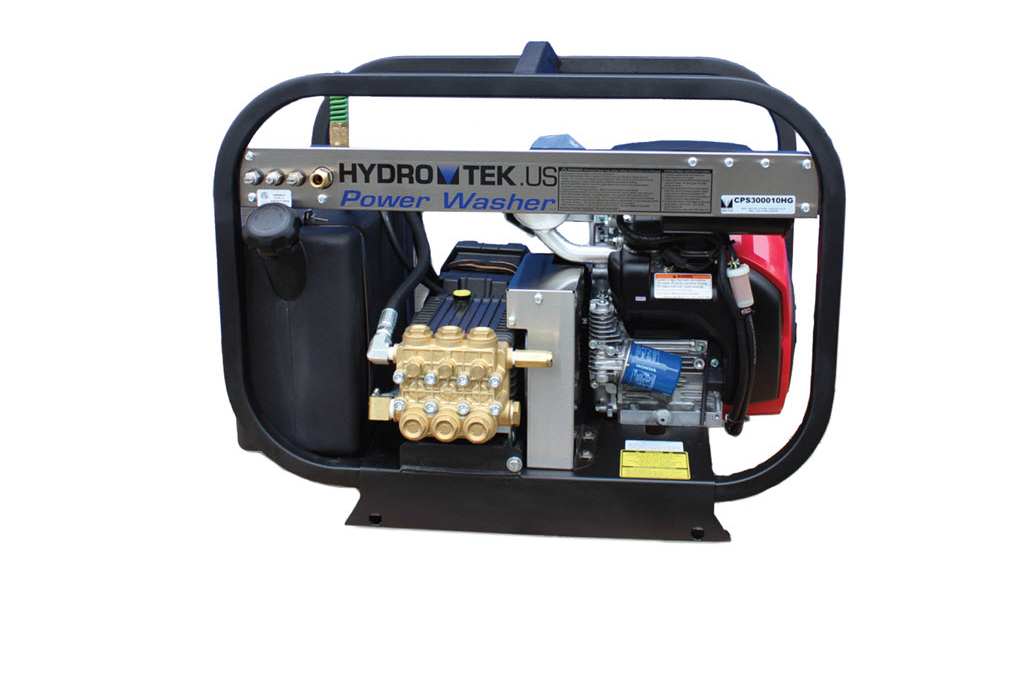

CPS Series: Cold Water Pressure Washer

CPS Series: Cold Water Pressure Washer


The CPS Series cold water pressure washer is the versatile, full-featured, choice in heavy duty cold-water pressure washers. The smooth running engine is equipped with pressure lubrication, oil filtration and a large fuel tank. The CPS Series is perfect for jobs requiring high pressure and high mobility: On-site equipment cleaning and auto-detailing, graffiti removal, paint preparation, moss and mildew removal from sidewalks and decks, wet sandblasting and more. This CPS Series cold water power washer is an excellent companion tool for the professional who wants performance and durability.


Long Life:
Built with the same chassis design & components as our proven hot water wash skids.

Rugged “Pro-tect-it” Frame:
Hydro Tek’s unique “Pro-tect-it” frame of heavy gauge steel, with durable electrostatically applied powder coat finish give greater protection to engine and other vital components. Heavy duty 1¼” structural tubing frame, with built-in lifting bars, offers flexible mounting options: trailer, tank skid, stationary, or add a wheel kit for a portable washer.

Industrial Engines:
Smooth running twin cylinder gas engine. Overhead valve, pressure lubrication, and oil filtration along with reserve horsepower delivers 50% longer life than single cylinder powered washers. Electric start, low oil shutdown engine starts with the turn of a key and shuts off automatically if oil pressure drops. (GX390 Honda has a single cylinder and CPS35004HGP is a pull start ).

Panel Mounted Unloader:
The unloader is frame mounted eliminating heat failures and vibration and is a pressure activated unloader for consistent and dependable operation.

Belt Drive Pump:
Low RPM drive pump runs cooler and quieter for continuous performance. These industrial triplex, ceramic plunger pumps outperform the competition in longevity.

EZ Align™ Belt System:
Tensioning system allows for easy belt adjustment with a single adjustment bolt. If you need to remove the pump for preventative maintenance, it is as simple as removing bolts, no need to reach underneath the washer.

Remote Fuel Tanks:
They have a high capacity, 8 gallon fuel tank which is located away from the engine reducing risk of fire from gas spills. This extra capacity tank extends running time between fill-ups. *GX390 Honda has a 6.4qt tank integrated into engine

More standard features:

  • Nozzles with insulated quick couplers
  • Heavy-duty, 50’ high pressure hose
  • Heavy duty, insulated wand with trigger gun
  • Twist coupler hose connection to easily remove gun/wand for storage or to add additional lengths of hose


Model PSI GPM CC Engine
CPS30005VH 3000 5.2 479 Vanguard Gas
CPS30008VG 3000 7.5 627 Vanguard Gas
CPS300010HG 3000 9.5 688 GX690 Honda Gas
CPS35005VC 3500 4.5 479 Vanguard Gas
CPS35005VG 3500 4.5 479 Vanguard Gas
CPS35006VG 3500 5.5 570 Vanguard Gas
CPS40005VC 4000 4.5 570 Vanguard Gas

Specifications may vary, consult factory for custom models

Dimensions: 35½”Lx26”Wx28”H (35½”Lx31”Wx33”H w/optional wheel kit)

Optional Accessories: Hour meter, Hose reel, Downstream soap injection, Stainless or custom color frame, Wheel kit, Trailer and Tank skid
