Description

AZV55 & AZV88: Powered by Hydro Tek SC or SCU Series

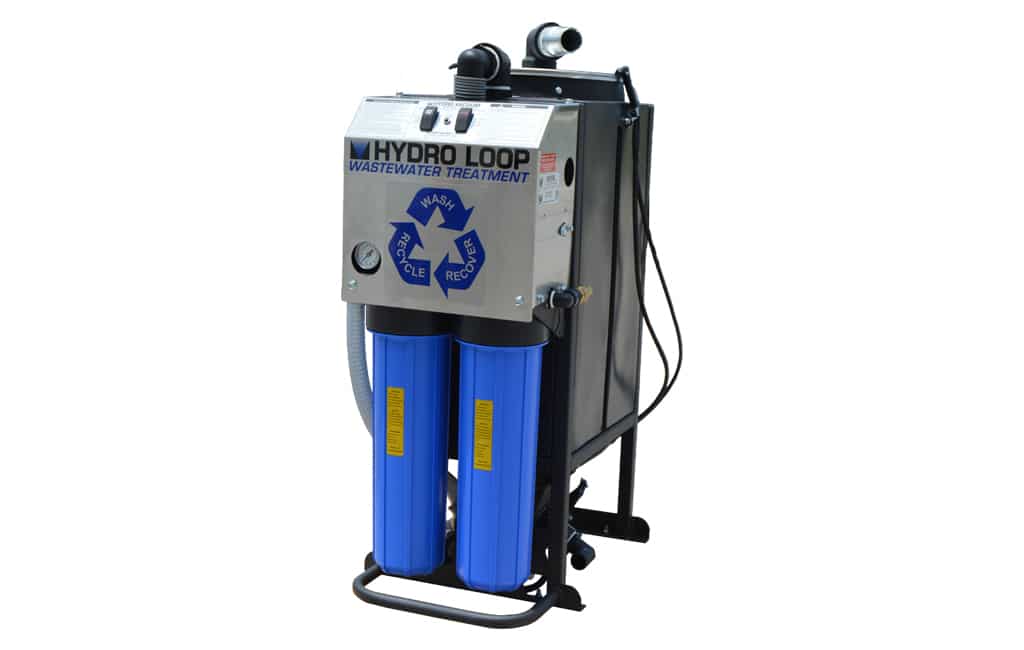

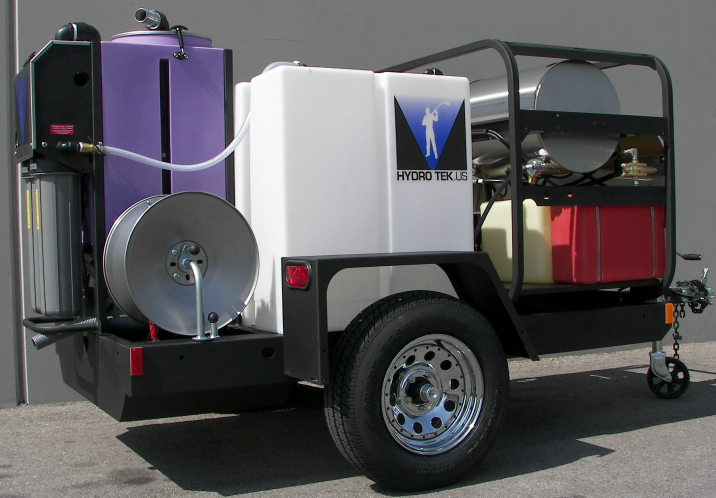

A portable recycle systems powered by Hydro Tek SC or SCU Series the Azv55 and AZV88 portable recycle sytem is protecting the environment from wash water runoff and complying with governmental storm drain regulations is simple, economical and effective with the AZV Series. The AZV vacuum and filtration system provides 6 stages of filtration up to 8gpm continuous five micron processing of wastewater where soaps and other chemicals are not used. Wastewater is recovered through a vacuum scupper, up to 12gpm, to eliminate run-off. Recycled water is pumped back to your bulk water tank for reuse to power wash concrete or other flatwork. You may also choose to divert treated water to landscaping or sewer as permitted. Heavy solids are collected in the V-section of the tank and are easily removed through a quick purge dump valve. When combined with a Hydro Tek SC or SCU Series washer and ProTowWash® trailer or tank skid, you have a complete self-contained mobile wash, recovery, and recycle unit. The system is the choice of professional cleaners to protect the environment, conserve water, and comply with EPA storm drain requirements. (For use with cold water or hot water up to 200°F)

Features:

  •  Vacuum recovery rate of 12gpm, with high level shut-down
  • Wastewater process rate 5gpm for AZV55, 8gpm for AZV88
  • 6 stage filtration process, including 3 oil absorption areas – filters to 5 micron purity
  • Rustproof, all stainless vacuum chamber & housing, with external drain
  • Automatic pump out, 12v, 15amp, transfers water without interrupting pickup
  • Complete with a set of filters, oil absorbing sock, containment berms, vacuum scupper, vacuum hose

RZV10E1:

The RZV10E1 vacuum filtration has the same features as the AZV88.  Same 6 stage filtration as the AZV Series, the RZV can be installed on your existing truck, van or trailer and powered by an outside power source. Includes a 35’ power cord with ground fault interrupter that can be plugged into a standard 120v, 15amp wall outlet or a 3500 watt generator may be used for mobile applications. (For use with cold water or hot water up to 200°F.)

Features:

  • Vacuum recovery rate of 12gpm, with high-level shut-down
  • Wastewater process rate 9.8gpm 6 stage filtration process, filters to 5 micron purity
  • Rustproof, all stainless vacuum chamber & housing, with external drain
  • Automatic pump out, 120v, transfers water without interrupting pickup
  • Complete with a set of filters, oil absorbing sock, containment berms, vacuum scupper, vacuum hose

Specifications

AZV55: 12 gpm recovery, 5 gpm recycle

AZV88: 12 gpm recovery, 5 gpm recycle

-Powered by SC or SCU Mobile Wash Skid

AZV55/AZV88 Tek Sheet

RZV10E1: 12 gpm recovery, 9.8 gpm recycle

-Powered by a standard 120v wall outlet

(May not be powered by SC or SCU series 2900 watt generator)

RZV10E1 Tek Sheet

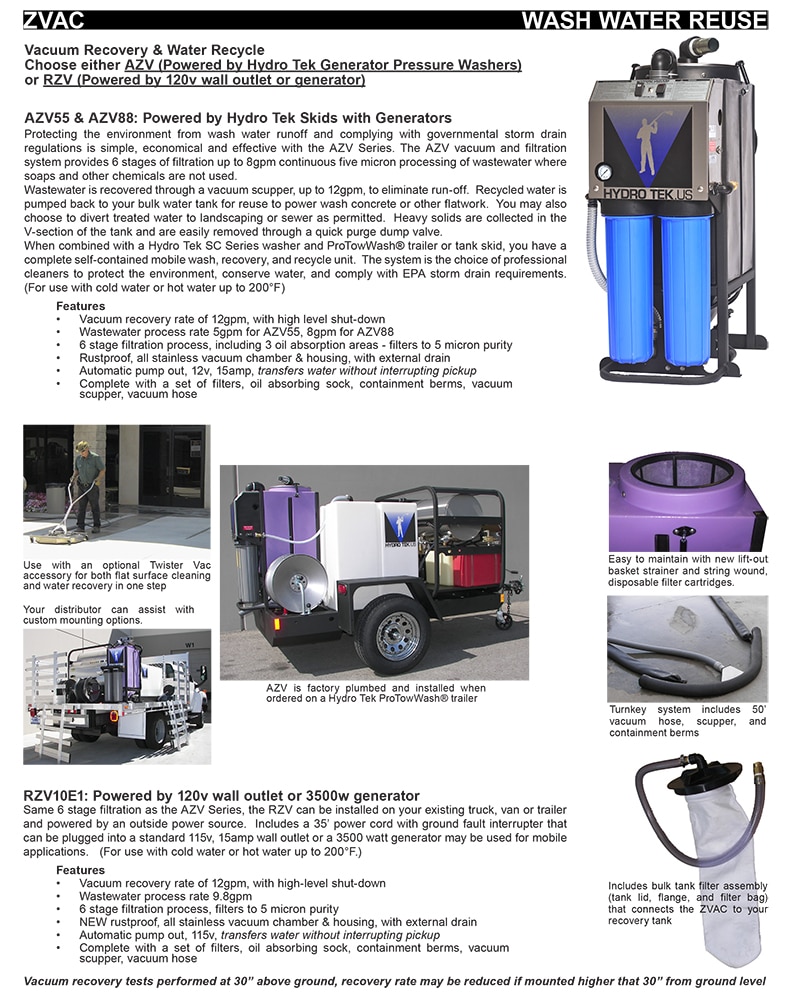

Download the Hydro Vacuum ® Brochure
